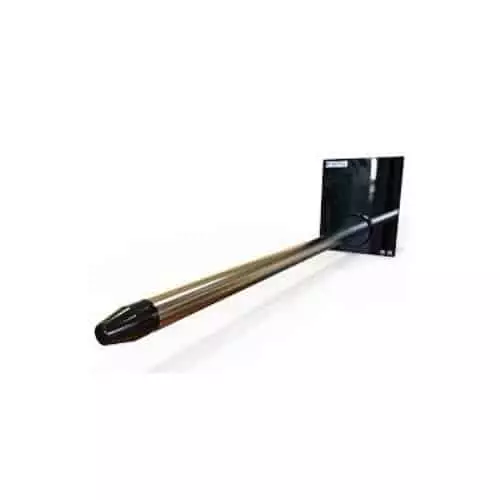

Carpet Boom

Call for Price

Weight – 215kg

C of G – 995mm

Max SWL at 2000mm – 384kg

LLC – 140mm

Backplate Length – 400mm

Backplate Height – 500mm

SKU: BOS000438 Categories: ,


Carriage mounted carpet booms offer an easy solution to the transport  and lifting of
carpets and other floor covering or similar rolled  materials.

A heavy duty range manufactured from high grade EN24T steel  with fully threaded
pole construction. Mounts directly onto the carriage of  the truck by means of
removing the lower hangers and driving slowly forwards  until the truck carriage
plate contacts the boom backplate, slight lifting is  needed to just below the
top hangers to allow re-fitting of the lower  hangers.

Testing is carried out to a 3:1 yield strength to ensure maximum  safety and

All booms can be fitted with “Quick Mounted” bottom hangers for an  additional
