High Lift Scoop

£1,109.20£1,547.23 +VAT

  • Volume Capacity – 0.20m3
  • Minimum Truck Capacity – 1500kg
  • Bucket Width – 800mm
  • Bucket Height – 367mm
  • Bucket Length – 905mm
  • C of G Min – 600mm
  • C of G Max – 682mm
  • Weight – 165kg
SKU: N/A Categories: ,

Description

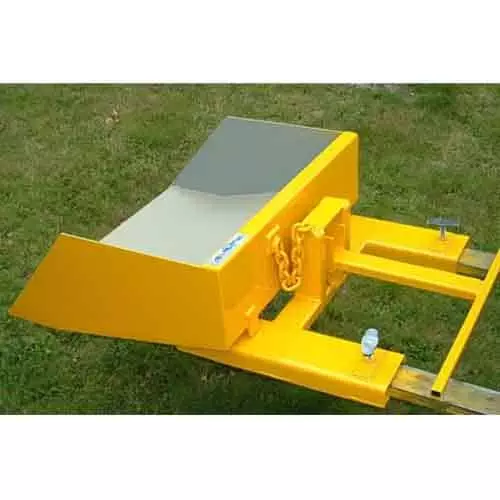

High Lift Forklift Scoop Attachment

The ideal scoop for high and long reach where exact measurement of contents is not important. Ideal for picking up overspills and dross in processing area.

To fill the bucket and pick up a load of material, the material should be approached at ground level. The truck is driven carefully forward, with the mast as near upright as possible until the bucket fills. The forks can then be raised and the material transported as required. To dump the material, the bucket is positioned directly over the discharge point. Once correctly positioned the operator lifts the release lever and the contents are discharged.

Maximum Fork Size 125 x 40mm

Max For Spread 886mm
